Solution to pain points in data cable welding: How QCW pulsed laser welding machine helps factories reduce losses and increase efficiency

      Last month, I visited a factory in Dongguan that specializes in Type-C data cables. The boss talked to me for most of the day, and the topic never strayed from the "pitfalls" of the soldering process. He said that previously, with ordinary soldering machines, at least 80 out of every 1000 cables had faulty soldering, and it was common for rework to continue until the early morning. What was even more troublesome was that the iron casing would deform when heated, rendering perfectly good connectors useless. The monthly scrap cost alone approached 20,000 yuan.

     This situation is actually not uncommon in the industry. Stainless steel components such as data cable connectors and shielding cases have extremely high requirements for welding accuracy and heat impact. Traditional welding equipment either has unstable penetration control or excessive heat input, resulting in almost inevitable issues such as cold solder joint and deformation, which have become an "industry ailment".

It was only after they switched to this ultra-high-power laser QCW pulsed laser welding machine that the situation saw substantial improvement. Its advantages are mainly manifested in three aspects:

1. High consistency in welding, with a significant reduction in the rate of cold solder joint

The equipment is specially optimized for precision stainless steel components such as data cable connectors and shielding shells. The consistency of solder joints can be controlled at the micron level, and the penetration depth is precisely adjustable, completely solving the problem of traditional welding that often breaks upon pulling. Currently, the scrap rate of this factory has been reduced from 12% to 0.5%. This alone saves rework and scrap costs every month, equivalent to giving workers an extra half-month bonus.

2. Minimal heat impact, protecting surrounding plastic parts

One of the major characteristics of QCW pulsed laser welding is its cold processing nature, with a very small heat-affected zone that primarily affects the welding spot area. Previously, when welding iron shells, workers had to worry about the surrounding plastic parts being damaged by heat. Now, there is no need for such concerns. We observed a Type-C interface welding process on site, and the iron shell was still cool immediately after welding, with no heat marks on the adjacent plastic sleeve - this is almost impossible to achieve with conventional welding techniques.

3. Low operational threshold and significant efficiency improvement

The equipment operation is also very simple, with parameter debugging automatically completed by the system, making it easy to get started. A post-00s girl in the factory was able to operate independently after just half a day of training. Now, she manages three machines alone, producing 45,000 wires daily, equivalent to one person replacing 18 skilled welders. The boss calculated: by reducing eight welding workers last month, the saved wages and social insurance payments were enough to purchase half a new equipment.

From a cost perspective, the calculation is straightforward:

Rework + scrap cost: reduced from the original 18,000 yuan/month to less than 1,000 yuan/month, saving nearly 200,000 yuan a year, which is enough to add another production line.

Labor cost: After efficiency improvement, the demand for personnel in the welding process has been significantly reduced, and there is no longer a reliance on experienced workers, which has greatly eased management.

    Factories that produce wire materials and 3C accessories ultimately come down to three things: details, efficiency, and cost control. This ultra-meter laser QCW pulse laser welding machine perfectly addresses these three points - solving cold solder joint issues, eliminating deformation, improving efficiency, and reducing scrap. For bosses, this is essentially a device that can be directly converted into profits.

Chaomi Laser Company also offers different models of machines

1. Standard single-head machine (manual flipping)

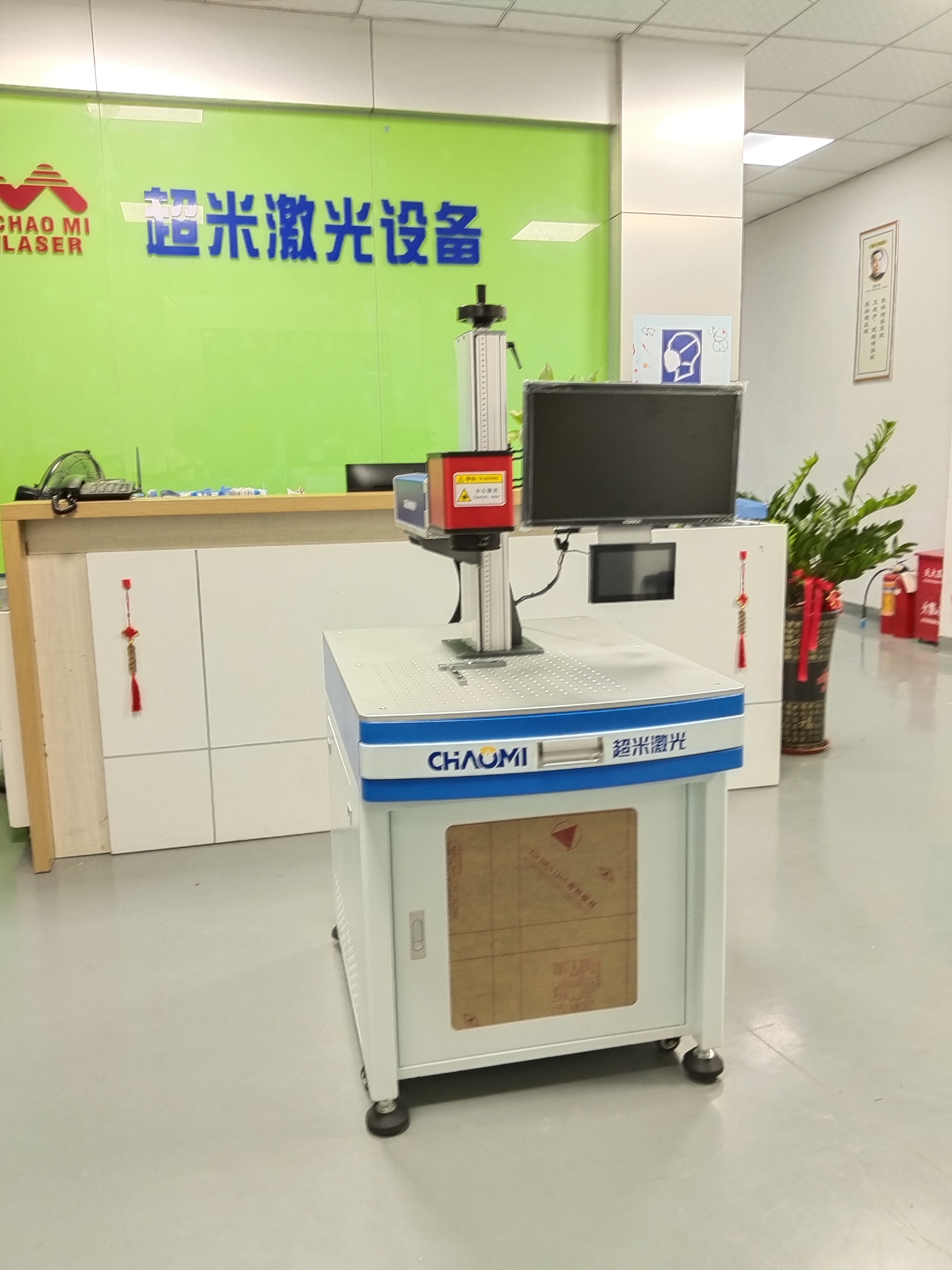

This model is an entry-level device, featuring a single laser head and manual loading and unloading. After welding one side, it requires manual flipping for welding the other side. Its advantage lies in the lowest equipment cost, making it suitable for factories that are just starting out, have small order volumes, or want to test the waters with lower investment. Although there is an additional flipping process, compared to traditional welding, the yield rate and efficiency have been significantly improved.

Standard single-head data cable laser welding machine (manual flipping)

2. Double-head simultaneous welding machine (manual feeding)

This model is equipped with dual laser heads, allowing for manual clamping and simultaneous welding on both the top and bottom surfaces with just one setup. It eliminates the need for flipping, doubling efficiency compared to standard machines. Moreover, the even heating on both sides further reduces stress deformation that may occur during single-sided welding. It is suitable for medium-sized factories with stable orders and a pursuit for higher efficiency.

3. Fully automated online welding system (in conjunction with automated production line)

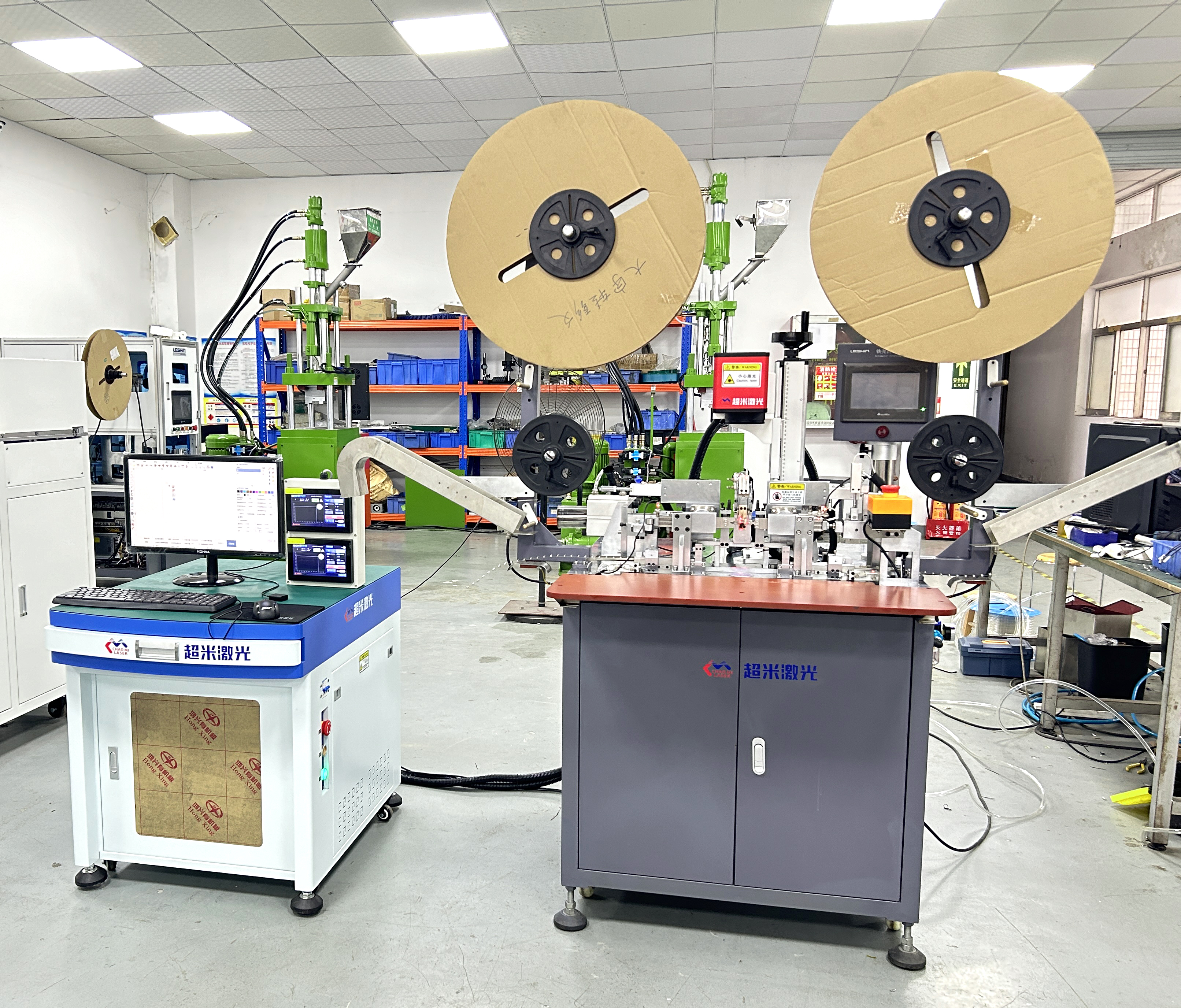

This is a flagship solution tailored for mass production. It can be directly integrated into your automated assembly line, enabling fully automated feeding, automatic iron shell assembly, automatic riveting, and simultaneous automatic welding from both the upper and lower dual-mirror laser heads. The entire process requires no human intervention, completely eliminating the instability associated with manual operations, and achieving the highest welding quality and consistency. With a daily production capacity of over 15,000 units, this equipment is ideal for large factories with high order volumes, a commitment to building unmanned workshops, and a pursuit of ultimate efficiency and long-term cost optimization.

Three-head simultaneous laser welding machine, fully automatic online welding system (compatible with automated production line)

In simple terms, from standalone to online, from manual to fully automated, factories at every stage can find the corresponding configuration. If you want to see specific solutions, please contact Chaomi Laser, and we can discuss in detail
